REST Client Frameworks - Your options

In previous blogs, I have discussed how the different frameworks for REST work, client and server side. In particular, I have investigated different JAX RS vendors such as Jersey, RESTEasy and Restlet JAX-RS and an implementation that is not JAX-RS as well, i.e., Core Restlet whose API pre-dated the JAX RS specification. I am currently looking at different JAX RS vendor implements for client side support. The JAX RS specification does not include a client side API and different JAX RS vendors have proceeded to create their own API's for the same. The framework one selects for the client and service ends do not have to be the same. For example, one could have a RESTful service running using Restlet while having a client developed in RESTEasy that consumes the same. In most cases, one will typically be satisfied with using the same client framework as one is using for the service development in order to be consistent and potentially be able to re-use artifacts in both areas if the framework permits the same.
That said, I have been looking at the following vendors for the Client side API and implementation as my needs require me to.

• Jersey - A JAX RS reference implementation from Oracle/Sun.
• RESTEasy - A JAX RS reference implementation by JBoss.
• Restlet - A pioneer of sorts that has support for Client Side REST calls
• CXF - An apache project that is a merger of XFire and Celtix. Provides a JAX RS implementation and JAX WS as well.
• Apache Wink - A JAX RS implementation that has a client and server side api that has had a 1.0 release just recently
• Spring 3.0 - Spring provides a RestTemplate, quite like the JmsTemplate and HibernateTemplate in its support of REST clients.
• Apache HTTPClient or Http Components - Direct use of HTTP API - Down and dirty.

As an evaluator, I would look for the following things in a Client framework:

• User Base - Documentation, Support, Community, Release cycles, Age of solution
• Easy of API for RESTful operations - URL Parameter substitution, HTTP verbs, Proxy support
• Dryness of the API - Certain frameworks allow for components such as contracts developed for the service to be re-used in the client
• Http Connection Control - Ability to do connection pooling, connection reaping and controlling lower level HTTP connection settings such as connection time out if required
• Safety of the API - It is possible to "leak" connections. This occurs when connections are not restored properly to the pool.
• Support for different Provider types - JAXB, JSON, Atom, Yaml and others while providing hookins to introduce new provider types.
• Interception of a requests - For security and ability to add additional information, for example to HTTP headers
• Deployment footprint - number of dependencies the library brings.
• Error Response Handling - Ease of handling alternate response types apart from standard expected responses, for example how the framework supports exception throwing.
• Performance - Efficiency of Provided Converters such as JAXB, JSON, Memory foot print etc

The above list represent things that one would look for while evaluating a solution. What I aim to do with this blog is provide a maven project that utilizes these client framework thus allowing evaluators to investigate the different solutions. I will put forth my opinions as well.
When dealing with connections, it is often desirable to keep alive Http Connections. The Apache Http Client has for sometime now provided a library that facilitates connection keep alive, connection reaping and safe release of connections. It is almost the defacto underlying Http Client library for Http operations. The standard Http support for the core jdk is limited in its offering. Apache Http Client recently underwent a re-haul of their architecture to clean out areas of their base while providing performance enhancements. Using Http Client directly has some limitations though where one would need to build converters for standard media types like JAXB, JSON, Atom etc. RESTful client libraries like RESTEasy, Jersey, Apache Wink and Restlet have a RESTful API layer on top of Apache Http Client that eases the development of RESTful clients.

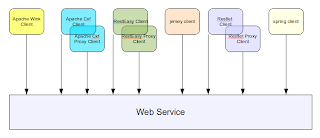

I am working with a Maven project that has a service that uses Jersey while having clients from different frameworks consume the same. The code is NOT doing any benchmarking of any sort, it can however be used to if required. What the code instead does is demonstrate the different clients and their API's. It also demonstrates the use of Proxies where applicable.
The service developed is very similar to the ones I have used in previous blogs where a client can obtain product information and then perform CRUD operations on Orders. Subsequently, from the clients perspective, there are two clients. Order Clients and Product Clients. Some of the client frameworks being discussed have the concept of annotation driven proxies that allow for easy development; for those frameworks, I have provided proxy clients in the examples as well.


All the clients of the example, implement one of the following two interfaces,
OrdersClientIF

public interface OrdersClientIF {
public static final String ORDERS_RESOURCE = "/orders";
 /**
  * Create an order.
  */
  public OrderDto create(OrderDto dto) throws OrderValidationException, OrderException;

  /**
   * Update an existing order
   */
  public void update(OrderDto dto) throws OrderNotFoundException, OrderValidationException,    OrderException;

  /**
   * Retreive an Order
   */
  public OrderDto get(Long orderId) throws OrderNotFoundException, OrderException;

  /**
   * Deletes an order
   */
  public void delete(Long orderId) throws OrderException;
}

ProductsClientIF

public interface ProductsClientIF {
public static final String PRODUCTS_RESOURCE = "/products";
  /**
   * @return A set of Products
   */
  public Set<ProductDto> getProducts();
}

1. Apache CXF:
Apache CXF is a full fledged JAX RS implementation with a client side api as well. It is a framework for JAX-RS and JAX-WS. A client API is provided in three forms, proxy based, HTTP-Centric and XML-centric. Apache Cxf however does not use HTTP Components or Apache HTTP Client. More information on their Client API can be viewed at http://cxf.apache.org/docs/jax-rs.html#JAX-RS-ClientAPI

a. Proxy Based:

public class ApacheCxfProxiedOrdersClient implements OrdersClientIF {
  /**
   * Proxy Definition
   */
  private static interface OrderCxfIF {
    @GET
    @Consumes(MediaType.APPLICATION_XML)
    @Path(ORDERS_RESOURCE + "/{id}")
    public OrderDto get(@PathParam("id") String id);

    @POST
    @Produces(MediaType.APPLICATION_XML)
    @Consumes(MediaType.APPLICATION_XML)
    @Path(ORDERS_RESOURCE)
    public OrderDto create(OrderDto dto);

    @PUT
    @Produces(MediaType.APPLICATION_XML)
    @Path(ORDERS_RESOURCE + "/{id}")
    public void update(@PathParam("id") String id, OrderDto dto);

    @DELETE
    @Path(ORDERS_RESOURCE + "/{id}")
    public void delete(@PathParam("id") String id);
}
....

public OrderDto create(OrderDto dto) throws OrderValidationException, OrderException {
  try {
    return JAXRSClientFactory.create(baseUri, OrderCxfIF.class).create(dto);
  }
  catch (WebApplicationException e) {
    if (e.getResponse().getStatus() == Status.BAD_REQUEST.getStatusCode()) {
      throw new OrderValidationException(e.getMessage());
    }
    throw new OrderException(e.getMessage());
  }
}
...
@Override
public OrderDto get(Long orderId) throws OrderNotFoundException, OrderException {
  try {
    return JAXRSClientFactory.create(baseUri, OrderCxfIF.class).get(String.valueOf(orderId));
  }
  catch (WebApplicationException e) {
    if (e.getResponse().getStatus() == Status.NOT_FOUND.getStatusCode()) {
      throw new OrderNotFoundException(e.getMessage());
    }
    throw new OrderException(e.getMessage());
  }
}
..
}

With the Proxy based API one can re-use server side artifacts for the client side as well. The API looks pretty straight forward to use and if requiring more control, one can also utilize the WebClient for more detailed operations such as setting header or content type. For handling exceptions, the Cxf site suggests the using the ResponseExceptionMapper. I however could not get the same to be registered and working. The documentation on the same appeared sparse. If one does not define a ResponseExceptionMapper, then when a failure occurs, a WebApplicationException is thrown. One can utilize the same to re-throw appropriate exceptions and consume alternate return types.

b. HTTP-Centric:

public class ApacheCxfOrdersClient implements OrdersClientIF {
....
  public OrderDto create(OrderDto dto) throws OrderValidationException, OrderException {
    try {
       return WebClient.create(baseUri).path(ORDERS_RESOURCE).accept(MediaType.APPLICATION_XML)
         .invoke(HttpMethod.POST, dto, OrderDto.class);
    }
    catch (WebApplicationException e) {
      if (e.getResponse().getStatus() == Status.BAD_REQUEST.getStatusCode()) {
        throw new OrderValidationException(e.getMessage());
      }
      throw new OrderException(e.getMessage());
    }
  }
....
  public OrderDto get(Long orderId) throws OrderNotFoundException, OrderException {
    try {
      return   WebClient.create(baseUri).path(ORDERS_RESOURCE).path(String.valueOf(orderId)).accept(
         MediaType.APPLICATION_XML).invoke(HttpMethod.GET, null, OrderDto.class);
    }
    catch (WebApplicationException e) {
      if (e.getResponse().getStatus() == Status.NOT_FOUND.getStatusCode()) {
        throw new OrderNotFoundException(e.getMessage());
      }
      throw new OrderException(e.getMessage());
    }
  }
}

With the HTTP Centric client, one uses WebClient instances. As in the case of the Proxy, one can catch the WebApplicationException in the case of failure responses for Exception management.

2. RESTEasy:

RESTEasy is a JBoss project that is a fully certified JAX-RS implementation. The client side framework supports the Proxy style model and a HTTP centric model as well. The client side framework utilizes Apache HTTP Client 3.X and has support for 4.X as well thus one has the ability to easily control connection parameters and pooling. The last time I read about the framework, both Http Client versions are supported but the HttpClient 4 has not been validated as well as the 3 version. The same might have changed since then. It is very easy to set one or the other though. Another nice feature is that an interface can be shared between the client and server. Requests can also nicely be intercepted via an implementation of org.jboss.resteasy.spi.interception.ClientExecutionInterceptor to add addition information to the header etc. More information on their Client API can be viewed from the web site http://www.jboss.org/file-access/default/members/resteasy/freezone/docs/1.2.GA/userguide/html/RESTEasy_Client_Framework.html

a. Proxy Based:

public class ResteasyProxiedOrdersClient implements OrdersClientIF {
  private static interface RestEasyIF {
    @GET
    @Consumes(MediaType.APPLICATION_XML)
    @Path(ORDERS_RESOURCE + "/{id}")
    public OrderDto get(@PathParam("id") Long id);

    @POST
    @Produces(MediaType.APPLICATION_XML)
    @Consumes(MediaType.APPLICATION_XML)
    @Path(ORDERS_RESOURCE)
    public OrderDto create(OrderDto order);

    @PUT
    @Produces(MediaType.APPLICATION_XML)
    @Consumes(MediaType.APPLICATION_XML)
    @Path(ORDERS_RESOURCE + "/{id}")
    public void update(@PathParam("id") Long id, OrderDto dto);

    @DELETE
    @Path(ORDERS_RESOURCE + "/{id}")
    public void delete(@PathParam("id") Long orderId);
  }

  static {
    RegisterBuiltin.register(ResteasyProviderFactory.getInstance());
    // Execution interceptor registration
    ResteasyProviderFactory.getInstance().registerProvider(ExecutionInterceptor.class);
  }

  private final ClientExecutor clientExecutor;
  private final RestEasyIF delegate;

  public ResteasyProxiedOrdersClient(String baseUri) {
  ...
    clientExecutor = new ApacheHttpClient4Executor(helper.getHttpClient());
    delegate = ProxyFactory.create(RestEasyIF.class, baseUri, clientExecutor);
  }

  public OrderDto create(OrderDto dto) throws OrderValidationException, OrderException {
    try {
      return delegate.create(dto);
    }
    catch (ClientResponseFailure failure) {
      if (failure.getResponse().getStatus() == Status.BAD_REQUEST.getStatusCode()) {
        throw new OrderValidationException(failure.getMessage());
      }
      throw new OrderException(failure.getMessage());
    }
  }

  public OrderDto get(Long orderId) throws OrderNotFoundException, OrderException {
    try {
      return delegate.get(orderId);
    }
    catch (ClientResponseFailure e) {
      if (e.getResponse().getStatus() == Status.NOT_FOUND.getStatusCode()) {
        throw new OrderNotFoundException("Order Not found");
    }
    throw new OrderException(e.getMessage());
  }
 }
}

One of the gripes that I had while working with the version of the RESTEasy Proxy is I could not understand why I had to provide an @Consumes annotation on the interface for an update operation that returns "void" and is a PUT HTTP method. The Cxf client did not have that requirement and I feel it redundant to have to specify the same.
Upon failure of an invocation, a ClientResponseFailure is thrown which can then be interrogated to throw any custom exception you desire. I must admit, one thing I have not tested is whether on not, upon receiving a ClientResponseFailure if the response body is not read, will the underlying HttpClient connection be safely released by RESTEasy proxy code for re-use or is there a potential to leak a connection? This is worth investigating if looking at the same.

b. HTTP Centric or Manual Client Request API:

public class ResteasyOrdersClient implements OrdersClientIF {
  ...
  private final ClientExecutor clientExecutor;

  static {
    RegisterBuiltin.register(ResteasyProviderFactory.getInstance());
    ResteasyProviderFactory.getInstance().registerProvider(ExecutionInterceptor.class);
  }

  public ResteasyOrdersClient(String baseUri) {
    ..
    helper = new HttpClientFourHelper();
    clientExecutor = new ApacheHttpClient4Executor(helper.getHttpClient());
  }

  public OrderDto create(OrderDto dto) throws OrderValidationException, OrderException {
    ClientResponse response = null;
    try {
      ClientRequest request = new ClientRequest(ORDERS_URI, clientExecutor);
      response = request.body(MediaType.APPLICATION_XML, dto).post();

      if (response.getStatus()
            == javax.ws.rs.core.Response.Status.BAD_REQUEST.getStatusCode())  {
        throw new OrderValidationException(response.getEntity(String.class));
      }
      return response.getEntity(OrderDto.class);
    }
    catch (OrderValidationException e) {
      throw e;
    }
    catch (Exception e) {
      throw new OrderException(e.getMessage());
    }
    finally {
      // Safe release of connection/stream
     if (response != null) {
       response.releaseConnection();
     }
    }
  }
  ...
  public OrderDto get(Long orderId) throws OrderNotFoundException, OrderException {
    ClientRequest request = new ClientRequest(ORDERS_URI + "/{id}",
     clientExecutor).pathParameter("id", orderId);
    ClientResponse response = null;
    try {
      response = request.accept(MediaType.APPLICATION_XML).get();
      if (response.getStatus()
           == javax.ws.rs.core.Response.Status.NOT_FOUND.getStatusCode()) {
        throw new OrderNotFoundException("Order Not found");
      }
      return response.getEntity(OrderDto.class);
    }
    catch (OrderNotFoundException e) {
      throw e;
    }
    catch (Exception e) {
      throw new OrderException(e.getMessage());
    }
    finally {
      if (response != null) {
        response.releaseConnection();
      }
    }
 }
....
}

With the manual API, one has considerable control on the request object such as setting headers etc. One difference to note that unlike in the case of the Proxy Client, in the event of a failure response, a ClientResponseFailure exception is not thrown. One would need to explicitly work with the ClientResponse object to discern the same and throw any custom exceptions desired. With the manual client, one has the ability to explicitly release the down stream connection to prevent leaks.

3. Restlet:

Restlet is one of the earliest frameworks for RESTful services ever developed if not the earliest. It has a very mature API and implementation and provides multiple ways of working with RESTful services. There is the core API which pre-dates the JAX-RS specification while also having a JAX-RS implementation. They have a mature client API that with their upcoming 2.0 release will utilize HttpClient 4.0. The control over the HTTP Client is a bit hard to get to as the API tends to hide the same. However, their API does allow for most HTTP Client control one would imagine. Again, there are two ways in which one can work with the Restlet client framework, either using Proxy Client or via direct HTTP centric API. Restlet documentation can be viewed at http://www.restlet.org/documentation/2.0/tutorial

a. Proxy Based:

public class RestletProxiedOrdersClient implements OrdersClientIF {
  // Proxy interface
  public static interface OrdersResource {
    @Get
    public OrderDto getOrder();

    @Post
    public OrderDto create(OrderDto dto);

    @Put
    public void update(OrderDto dto);

    @Delete
    public void delete();
  }
  ....

  public OrderDto create(OrderDto orderDto)
    throws OrderValidationException, OrderException {
    try {
      ClientResource cr = new ClientResource(ORDERS_URI);
      OrdersResource res = cr.wrap(OrdersResource.class);

      OrderDto result = res.create(orderDto);
      return result;
    }
    catch (ResourceException e) {
      if (e.getStatus().equals(Status.CLIENT_ERROR_BAD_REQUEST)) {
        throw new OrderValidationException(e.getMessage());
      }
      throw new OrderException("Unexpected Error:" + e.getStatus());
    }
  }
  ...
  public OrderDto get(Long orderId) throws OrderNotFoundException, OrderException {
    ClientResource cr = new ClientResource(ORDERS_URI + "/" + orderId);
    OrdersResource res = cr.wrap(OrdersResource.class);
    try {
      return res.getOrder();
    }
    catch (ResourceException e) {
      if (e.getStatus().equals(Status.CLIENT_ERROR_NOT_FOUND)) {
        throw new OrderNotFoundException(e.getMessage());
      }
      throw new OrderException("Unexpected Error:" + e.getStatus());
   }
 }
..
}

Exception management is handled by catching a ResourceException and throwing any custom exception desired. One area that requires further investigation is how to safely release a HTTP Connection when using HTTP Client as the underlying transport and ClientResource with the Proxy. Again, this is an area one would need to dig into if control of HTTP Client parameters is required along with safe release of pooled connections. For more information on the same look at http://n2.nabble.com/Client-Timeout-on-ClientResource-post-method-td3690842.html.

b. HTTP Centric or Manual Client Request API:

public class RestletOrdersClient implements OrdersClientIF {
  private final Client client;
  ....
  public RestletOrdersClient(String baseUri) {
    client = new Client(new Context(), Protocol.HTTP);
    ..
  }

  public OrderDto create(OrderDto orderDto) throws OrderValidationException, OrderException {
    Response response = null;

    try {
      response = client.post(ORDERS_URI, new JaxbRepresentation<OrderDto>(orderDto));

      if (response.getStatus().isSuccess()) {
        return new JaxbRepresentation<OrderDto>(response.getEntity(), OrderDto.class).getObject();
      }
      else if (response.getStatus().equals(Status.CLIENT_ERROR_BAD_REQUEST)) {
        throw new OrderValidationException("Error validating order");
      }
      else {
        throw new OrderException("Error processing order:" + response.getStatus());
      }
    }
    catch (OrderValidationException e) {
      throw e;
    }
    catch (IOException e) {
      throw new OrderException("Unexpected:" + e);
    }
    finally {
      // Explicit safe release of response
      if (response != null) {
        response.release();
      }
    }
  }

  public OrderDto get(Long orderId) throws OrderNotFoundException, OrderException {
    Response response = null;

    try {
      response = client.get(ORDERS_URI + "/" + orderId);
      if (response.getStatus().isSuccess()) {
        return new JaxbRepresentation<OrderDto>(response.getEntity(), OrderDto.class).getObject();
      }
      else if (response.getStatus().equals(Status.CLIENT_ERROR_NOT_FOUND)) {
        throw new OrderNotFoundException("Order Not Found");
      }
        throw new OrderException("Unknown error processing order:" + response.getStatus());
    }
    catch (IOException e) {
      throw new OrderException(e.getMessage());
    }
    finally {
      if (response != null) {
        response.release();
      }
    }
  }
}

The direct Client API is very straight forward as well. With the safe release of Http Connections accounted for and control of the HTTP Client parameters, the Restlet client is a very powerful proven client side implementation.

4. Apache Wink:

Apache Wink is a complete implementation of the JAX-RS specification while providing a client side API to communicate with RESTful services. The framework is relatively new with 1.0-incubating version available at the time of this blog. Apache Wink allows you to work with Http Client and thus control all the lower level operations easily. Unlike the above mentioned frameworks, there is currently no Proxy based client support for Apache Wink. That said, their client API flows very well and is easy to understand and use. An implementation of their ClientHandler interface allows one to easily intercept requests for custom header or security while also providing an avenue to throw custom exceptions based of alternate failure responses. Documentation on the Apache Wink client can be viewed at http://incubator.apache.org/wink/1.0/html/6%20Apache%20Wink%20Client.html

public class ApacheWinkOrdersClient implements OrdersClientIF {
  private final RestClient restClient;
  ...
  public ApacheWinkOrdersClient(String baseUri) {
    ClientConfig config = new ApacheHttpClientConfig(helper.getHttpClient());
    // Exception handler can also be used as an intercepting filter
    config.handlers(new ExceptionHandler());
    restClient = new RestClient(config);
  }

  public OrderDto create(OrderDto dto) throws OrderValidationException, OrderException {
    try {
      return restClient.resource(UriBuilder.fromUri(baseUri)
            .path(ORDERS_RESOURCE).build()).contentType(MediaType.APPLICATION_XML)
            .accept(MediaType.APPLICATION_XML).post(OrderDto.class, dto);
    }
    catch (ClientRuntimeException e) {
      if (e.getCause() instanceof OrderValidationException) {
         throw ((OrderValidationException) e.getCause());
      }
      else if (e.getCause() instanceof OrderException) {
         throw ((OrderException) e.getCause());
      }
      throw e;
    }
  }
  ...
  public OrderDto get(Long orderId) throws OrderNotFoundException, OrderException {
    try {
      return restClient.resource(UriBuilder.fromUri(baseUri)
        .path(ORDERS_RESOURCE).path("{id}").build(orderId)).accept(MediaType.APPLICATION_XML)
        .get(OrderDto.class);
    }
    catch (ClientRuntimeException e) {
      if (e.getCause() instanceof OrderNotFoundException) {
        throw ((OrderNotFoundException) e.getCause());
      }
     else if (e.getCause() instanceof OrderException) {
        throw ((OrderException) e.getCause());
     }
     throw e;
   }
  }
  ....
  private static final class ExceptionHandler implements ClientHandler {
    public ClientResponse handle(ClientRequest request, HandlerContext context) throws Exception {
      // Filter for example for standard headers
      request.getHeaders().add("foo", "bar");

      ClientResponse cr = context.doChain(request);
      if (cr.getStatusCode() == Status.NOT_FOUND.getStatusCode()) {
        throw new OrderNotFoundException(cr.getMessage());
      }
      else if (cr.getStatusCode() == Status.BAD_REQUEST.getStatusCode()) {
        throw new OrderValidationException(cr.getMessage());
      }
      else if (cr.getStatusCode() == Status.SERVICE_UNAVAILABLE.getStatusCode()) {
        throw new OrderException(cr.getMessage());
      }
      return cr;
   }
 }
}

5. Jersey:

Jersey is sun's implementation of the JAX-RS specification. Jersey like other frameworks provides for a client side framework as well. Jersey supports Apache HTTP Client via a totally separate implementation and artifact. Currently the support exists for HttpClient 3.X, whether 4.X will be incorporated is up in the air. One can choose to write custom code to do the same if Http Client 4.X is the direction one wishes to employ. Jersey does not have the concept of Proxy clients currently. However, their API flows very well with their standard client. Their use of Filters on the client side enables easy interception of requests for customization while providing safe release of any connections used. Information on jersey and their client API can be found at https://jersey.dev.java.net/

public class JerseyOrdersClient implements OrdersClientIF {
  ....
  public JerseyOrdersClient(String baseUri) {
    ..
    ApacheHttpClientHandler handler = new ApacheHttpClientHandler(helper.getHttpClient());
    client = new ApacheHttpClient(handler);
    // Filter allows for intercepting request
    client.addFilter(new RequestFilter());
  }
  ...
  public OrderDto create(OrderDto dto) throws OrderValidationException, OrderException {
    ClientResponse response = null;
    try {
      response = client.resource(baseUri).path(ORDERS_RESOURCE).entity(dto,
        MediaType.APPLICATION_XML).post(ClientResponse.class);
      throwExceptionIfNecessary(response);
      return response.getEntity(OrderDto.class);
    }
    finally {
      if (response != null) {
        response.close();
      }
    }
  }
  ...
  public OrderDto get(Long orderId) throws OrderNotFoundException, OrderException {
    ClientResponse response = null;
    try {
      response = client.resource(baseUri).path(ORDERS_RESOURCE)
       .path(String.valueOf(orderId)).accept(MediaType.APPLICATION_XML)
       .get(ClientResponse.class);

      if (response.getStatus() == Status.OK.getStatusCode()) {
        return response.getEntity(OrderDto.class);
      }
      else if (response.getStatus() == Status.NOT_FOUND.getStatusCode()) {
        throw new OrderNotFoundException(response.getEntity(String.class));
      }
      else if (response.getStatus() == Status.SERVICE_UNAVAILABLE.getStatusCode()) {
        throw new OrderException(response.getEntity(String.class));
      }
      throw new OrderException("Unexpected");
   }
   finally {
     if (response != null) {
       response.close();
     }
   }
 }
 ....
 private static final class RequestFilter extends ClientFilter {
   public ClientResponse handle(ClientRequest cr) throws ClientHandlerException {
      MultivaluedMap<String, Object> map = cr.getHeaders();
      map.add("foo", "bar");
      return getNext().handle(cr);
   }
 }
}

6. Spring RestTemplate:

Aah, what do I say. My favorite framework in the whole wide world is now supporting REST with their 3.X release. Like the popular HibernateTemplate, JdbcTemplate we now have RestTemplate with Spring. Spring supports server side JAX-RS and a client API to consume the service with the RestTemplate. RestTemplate can be configured to work with HttpClient 3.X and thus have control over lower level HTTP parameters and pooling pretty easily. The RestTemplate like other thoughtful Spring implementations is based of callbacks where safe release of resources is important. The RestTemplate has simple methods for commonly used HTTP operations while providing the call back mechanism when one desires more control. I must however mention with great restraint that going the call back route is not an easy task and requires considerable customization. This becomes important if you wish to customize the header properties etc. Error handling is easily accomplished with an extention of ResponseErrorHandler. Further information on the RestTemplate can be viewed at the following location http://static.springsource.org/spring/docs/3.0.x/spring-framework-reference/html/remoting.html#rest-client-access

public class SpringOrdersClient implements OrdersClientIF {
  private final RestTemplate template;
  ....
  public SpringOrdersClient(String baseUri) {
    ...
    ClientHttpRequestFactory requestFactory
       = new CommonsClientHttpRequestFactory(helper.getHttpClient());
    template = new RestTemplate(requestFactory);
    // Set Error handler
    template.setErrorHandler(new ErrorHandler());
  }

  public OrderDto create(OrderDto orderDto) throws OrderValidationException, OrderException {
    return template.postForObject(ORDERS_URI, orderDto, OrderDto.class);
  }

  public OrderDto get(Long orderId) throws OrderNotFoundException, OrderException {
    return template.getForObject(ORDERS_URI + "/{id}", OrderDto.class,
        Collections.singletonMap("id", String.valueOf(orderId)));
  }
  ....
  private static final class ErrorHandler implements ResponseErrorHandler {
    @Override
    public boolean hasError(ClientHttpResponse response) throws IOException {
      if (response.getStatusCode().series().compareTo(Series.SUCCESSFUL) == 0) {
        return false;
      }
      return true;
    }

    public void handleError(ClientHttpResponse response) throws IOException {
       if (response.getStatusCode().equals(HttpStatus.NOT_FOUND)) {
          throw new OrderNotFoundException("Order Not Found");
       } else if (response.getStatusCode().equals(HttpStatus.BAD_REQUEST)) {
          throw new OrderValidationException("Error validating order");
       } else {
          throw new OrderException("Unexpected error:" + response.getStatusText());
       }
    }
  }
}

Running the Examples:

The example is available as JDK 6.X project that uses maven. An integration test is provided that uses each of the different mentioned clients to communicate the very same life cycle test for CRUD operations with the RESTful service. Once you have a maven environment, execute "mvn install" from the root level of the project to see the entire project build and execute the integration test where each of the clients are demonstrated. For those interested, you could use the clients to determine benchmarks, test for memory foot print, what have you.
Download the source from HERE.

Parting Thoughts:
I hope the above examples are of use to someone evaluating REST frameworks for their project and would like to witness each of them in action. I have been a REST fanatic ever since introduced to the architectural style and simply enjoy playing with frameworks and tools that present themselves. It would have been nice if during jsr 311 the expert body had defined a client side api as well. I beleive a future JSR is expected for a client API to JAX-RS.
One can details about each of the above mentioned projects and metrics about the same such as commiters, activity, maturing etc from Oh Loh. That said, I would like to share my 2c on the above frameworks. Note that these are my own 2c that I am pulling out of my b..t and is not in any way my employers views or thoughts on the matter.

Apache Cxf:
The one word that comes to mind when I view this framework is BLOAT. It seems to bring in so many dependencies that are of no use if ones goal is simply to work with REST. Their documentation on the REST clients API was not the best with broken links. It is my understanding that they do not support Apache HTTP Client and there is no drive to do the same. If a team is supporting JAX-WS and JAX-RS, maybe their framework works in synergy. You will notice that among all the frameworks mentioned above, I never bothered to support an example of CXF, the primary reason for the same is my disillusionment with their documentation and WIKI where I encountered broken links and partial information. I also ran into an issue where I needed to have HttpServletRequest on the client as a dependency.

RestEasy:
In RestEasy, you have me as a fan. I really like the effort put into the framework by its owner Bill Burke and his team. Their proxy solution is very enticing and will serve to address most RESTful consumers. I might be pipe dreaming here but never the less, I recall reading somewhere that the RESTEasy's implementation of the client library will be serving as the foundation of the client side equivalent of JSR 311. Active development, with support for ASYNC HTTP along with good documentation is what they bring to the table. It is an especially notable consideration to use RESTEasy if re-use across service and client for "contract" purposes is desired. One additional point of note is the philosphy that RestEasy employs regarding backward compatibilty. They seem very concious regarding the direction they employ with change to ensure backward compatibility.

Restlet:
Restlet is an established and proven framework. One of the things I particularly like about Restlet is that their community is very active in offering assitance to those in need. If you post a question on their mailing list, you can almost be guaranteed a response as long as the question is within answerable parameters. They are very quality concious as well. One gripe that I do have have with Restlet is that they have chosen to break compatiblity between their 1.1.X series of releases when moving to their 2.0.X series without a transitionary phase.
The selling point of Restlet as a client API is their transparent API and simplicitly, coupled with their helpful community.

Apache Wink:
YAJAXRS (Yet another JAX-RS implementation) is my initial reaction when thinking of Apache Wink. However, when I look further, although comparitively immature in the space, they have a solid offering in WINK. If you are looking for a light weight JAX-RS implementation, look no further. Their client API utilizes Http Client 4.0 to effect and in my tests with the API, it found it really fast and performant. Their API is simple, transparent and effective. Their documentation is however sparse and I wonder regarding their longevity when compared with the big hitters such as jersey, restlet and resteasy.

jersey:
jersey, as I said in a previous blog, home town of the boss, rocks. What appeals to me is the simplicity of the API, the adoption, the community and decent documentation regarding the API. Their support for Http Client 3.X is present. I am certain they will support 4.X soon.

spring:
Its hard to say anything about spring without seeming biased in favor. Spring's RestTemplate is as solid as can be expected. Their standard call back based approach for safe release of resources works well even for the REST template. If one is using Spring-mvc and their REST support, very few reasons would drive me to consider an alternative framework for the client. One among them is definitely finer grained control, another is Http Client 4.X support. Documentation is sparse on RestTemplate as well. But one has a community to back up on. There might a bit of up front customizations, standard call back etc that an adopter might create but once done I feel that it would be a easy to work with the RestTemplate.
Clearly one has many choices in selecting a client side framework for RESTful HTTP. In most cases it probably makes sense to use the same framework for the service and client end. Then again, if you are only a consumer of a service you have multiple choices among those shown above as well as the option of using Apache HTTP Client or Components directly and bypassing the higher level frameworks. For some, integrating with the spring framework is important and all the above frameworks have means of integration points, both on the service and client sides. Support for Client Proxies is something one might want to consider as they tend to simplify the programming model. Further if Resource definitions can be shared among client server, that can be quite useful in being DRY (Don't repeat yourself) and provide means for contract definition. For those interested in performance and tuning of the HTTP Connections, using a framework that allows you to manage connection pooling and other parameters is definitely the way to go. One should also look at the maturity, user base, support, back ward compatibility support when making a selection. Are there other options apart from the above mentioned? In addition, any recommendations based of personal experience with the above mentioned client frameworks is always welcomed.

Message Ordering in JMS - Using Coherence and Hibernate

As I continue to work with JMS and WebLogic, I wonder about Message Ordering. I have looked for strategies and best practices and have finally done some experimentation that I would like to share.

One of the common patterns when working with Enterprise Integration and Messaging is the Competing Consumer Design Pattern. The same is explained very well in the book "Enterprise Integration Patterns" by Hohpe and Woolf.

As shown above we have consumers that are competing for messages on the queue. As each consumer can process out a message, the consumers scale out horizontally and improve the performance while at the same time guaranteeing high availability.

For the sake of discussion, consider that by some stroke of chance the messages 2 and 3 are for the same item, simply published one after another. With the competing consumer pattern, it is possible that message 3 gets processed before message 2 resulting in an erroneous information propagated to downstream systems such as a database thus compromising the integrity of the data.

One of the ways to prevent this scenario from happening is using a single consumer as shown in the figure below where messages in the queue will be consumed (maybe persisted to the database) in serial order by the consumer:

One problem with this approach is that now we have compromised on the availability and performance of the system as we have only a single consumer performing the task.

The JMS Specification is clear that a messaging system must deliver message in FIFO (First in-First out) order to consumers. However, the specification is silent regarding ordering when related to re-delivery of a message. In the case of a single consumer if there is a problem processing the message and it gets rolled back due to say a problem with the underlying database which the consumer is communicating with, then most providers will not attempt to redeliver the message immediately but do so after a configurable delay. Between this delay, if the database problem is cured and the consumer picks Message 3 and processes the same, then when Message 2 is delivered and processed, the downstream database would contain stale data.

One could say that any rejected message should be placed at the very front of the queue. However, if the message was a poison message and the logic to detect the same and dequeue the message were not built in the consumer, then putting the message back to the front of the queue would render the queue non-consumable, unless there is retry count configured in which case the poison message could be expired or placed in a dead letter queue after the retry count.

A strategy that can be employed where the ordering of the message would not really matter is to use the message queue simply as a notifier with the consumers going back to the source system to get the most current record to process as shown in the figure below:

In the example shown above, the producer sends a message to the queue that is only a notifier with the "RECORD_ID" of the record from the source database. The consumer upon receiving the message goes back to the source database to obtain the payload information and then process the message. By doing so, regardless of the messaging order, the most recent payload for a record is selected.

The above approach works great when one does have access to the source system and represents a tight coupling in the system. From a performance perspective, we save on the size of messages and the fact that only selects need to be issued on the source system. Further there is something to say about the simplicity of the solution. It however crumbles when the consuming end of the application does not have access to the source system resource to obtain the latest data for the record in question.

So what can we do to ensure that we process in the correct order and also have high availability and performance at the same time ? Please note that I my focus is only on the consumption ordering of the message in the consumer system. Regarding production of messages, ordering of placement and strategies is something I am not covering. That said, I am making an assumption that on the production end of the system messages will always be made available in order. Following on this assumption, I am taking the liberty of assuming that the JMS Time stamp uniquely identifies the messages in the order they were sent. Note that this assumption can be wrong but for keeping my examples tractable I am taking this liberty.

That said, I can see two strategies that could be employed. There maybe others that I would love to hear about as well.

1. Database Optimistic Lock based Versioning:

Every JMS Message sent has a time stamp associated with it. If the down stream database that the consumer accesses can maintain a table of RECORD_ID-LAST_UPDATE_DATE then by using Optimistic Versioning one can reject records whose time stamps are older than the one in the database. One can use Pessimistic locking as well, however for high scalable systems, Optimistic locking is definitely preferred.

With an optimistic locking solution employed, only if a record is more recent than the database would the message be processed. If all that one is doing is updating a downstream table with information after any business processing, then you might be able to tag a time stamp column to the table to serve the same purpose. Look at the figure below where both competing consumers are attempting to update the same table which has a last time stamp column for optimistic locking:

In the above shown example, let us say we are receiving updates to existing PERSON records. If M1 and M1' represents updates to the same person with M1 issued at time t and M1' issued at t + dT then, if C1 is the first one to update the Person, then all is good as C2 will update shortly and the record will have the most current value. If C2 updates the database record first and C1 tries to update, it will fail as the JMS time stamp on M1 is older than what is in the database for the Person.

I used Hibernate and HSQL to test this out. Hibernate has a feature for optimistic automatic versioning for detached objects. In order to employ the same, one has to use a Version property. The Version property cannot be set programatically but is auto-updated by Hibernate. For this reason the JMS Time stamp passed in cannot be used to version but can be used as part of the optimistic strategy.

I have a Person object that represents the database model and it looks like the following:

@Entity
@Table(name = "PERSON")
public class Person {
 @Id
 @AccessType(value = "property")
 private Long recordId;

 @Column(name = "FIRST_NAME", nullable = false)
 private String firstName;

 @Column(name = "LAST_NAME", nullable = false)
 private String lastName;

 @Temporal(TemporalType.TIMESTAMP)
 @Column(name = "JMS_TIMESTAMP", nullable = false)
 private Date jmsTimestamp;

 @Version
 @Column(name = "OPT_VER", nullable = false)
 @AccessType(value = "property")
 private Long version;
...
}

Using this code shown above, and the corresponding Data access tier, one can witness optimistic locking in action where messages are rejected or consumed as shown in the output below. Record 13 was rejected as there was a previous record in the database with a newer JMS Time stamp. Record 12 is accepted as although there is an existing record with ID 12, the time stamp on the database record is older than the JMS Time stamp of the message:

18:58:27 ERROR - com.welflex.activemq.AbstractListener.onMessage(35) | Rejecting the Stale Record [13]
com.welflex.exception.StaleObjectException: Stale Record. Database time for the record is [1266631107150], attempted to update with older timestamp [1266614643023]
at com.welflex.hibernate.dao.PersonDaoImpl.saveOrUpdate(PersonDaoImpl.java:27)
at com.welflex.service.PersonServiceImpl.savePerson(PersonServiceImpl.java:29)
at ...
18:58:28 INFO - com.welflex.activemq.AbstractListener.onMessage(32) | Successfully processed Record with ID [12]
......

2. Cache based Pessimistic Lock based Versioning:

In this strategy, I have employed Coherence from Oracle for the demonstration. The strategy employed is that when a message arrives it attempts to acquire a coherence lock for the record in question, upon obtaining the lock a check is performed to see if the corresponding date associated with the record is older than the date of the message being worked on. If the cached record is older, then the process is completed. In the case of the example the resulting operation is updating the record in the database. If the cached record in Coherence was older, then the message is rejected. In either case, the lock is release for the next record. A clear example of Pessimistic locking here. Coherence might allow for optimistic locking and transactions but I have not experimented with the same as yet. A figure demonstrating the strategy is shown below where a record is only updated to the database if the Cache lock is successfully acquired:

One thing to note with this solution, if there are many records, then one would need to be careful regarding how often the cache is expired of its entities. The decision of the same could be made if one has some idea on the frequency in which duplicates could be expected. Another point to note is that if all the node's in the cache collapse, and there were message's that were rolled back to be delivered later, unless the cache is primed or restored in some fashion, the solution could fail.

The code for the pessimistic locking in the cache is shown below:

public <T, E extends Exception> T doCacheAction(String cacheKey, Long timeStamp,
    CacheAction<T, E> action) throws E {
 try {
  idCache.lock(cacheKey, -1);
  Long cacheTime = (Long) idCache.get(cacheKey);
  if (cacheTime == null || timeStamp.longValue() > cacheTime.longValue()) {
    T result = action.doAction();
    idCache.put(cacheKey, timeStamp);
    return result;
  }
  throw new StaleObjectException("Coherence Cached Date [" + cacheTime
     + "] for Record    [" + cacheKey + "] is newer than passed in time ["
     + timeStamp + "]. Rejecting the record....");
  }
  finally {
   idCache.unlock(cacheKey);
 }
}

When an example is run, one can witness the following where Record 10 is successfully processed while record 13 (no wonder) is rejected:

19:24:35 INFO - com.welflex.activemq.AbstractListener.onMessage(32) | Record updated :10
19:24:35 ERROR - com.welflex.activemq.AbstractListener.onMessage(35) | Rejecting the Stale Record [13]
com.welflex.exception.StaleObjectException: Coherence Cached Date [1266632674247] for Record [13] is newer than passed in time [1266632673051]. Rejecting the record....
at com.welflex.service.CoherenceCacheServiceImpl.doCacheAction(CoherenceCacheServiceImpl.java:36)
at com.welflex.activemq.CacheMessageListener.doWithMessage(CacheMessageListener.java:28)
at com.welflex.activemq.AbstractListener.onMessage(AbstractListener.java:31)
at org.springframework.jms.listener.AbstractMessageListenerContainer.doInvokeListener(AbstractMessageListenerContainer.java:543)

The Sample Code:

Attached herewith is a maven project that demonstrates the above concepts. The example sends messages of a fixed number of record id's to an Active MQ queue and has consumers that demonstrate optimistic or pessimistic locking to reject or accept messages. Spring, the only framework that has my undying admiration is used only for its Listener Container. The Coherence cache in the tests does not demonstrate a clustered cache but the same can be experimented with easily using the code provided. The tests will demonstrate both the cases mentioned above and should be runnable out of the box. I have taken some liberties with Hibernate, JMS and Coherence so don't bother pinning me to the stake for the same, I could care less, I have pinned myself in advance...;-)

Download the code from HERE and execute "mvn test" to see the demonstration of locking/unlocking.

Parting Thoughts:

1. Single Consumer:

The single consumer approach seems to be the most widespread pattern, whether in EJB/MDB land or otherwise for most message ordering solutions. It however is not a very scalable one. Further, if used, I believe it will have to maintain some state as well regarding previous messages received as it would need to deal with messages that were re-delivered. A posting on the Server side regarding EJB/MDB and ordering of messages.

2. The "Going back to the Source" pattern:

The pattern is acceptable clearly if you have access to the source. In terms of simplicity it is definitely the best possible solution to the problem. All the JMS Message becomes is an event notifier with a record id. I must however say that from a purely emotional perspective, it just feels ugly due to the tight coupling between the producer and consumer ends of the application. Again, note that it will not work when the consumer cannot access the source system.

3. Database based ordering:

Database for message ordering works well when you have control on the schema. If working with a legacy system, this can prove an impediment. Apart from not having a dependency on the source system, one advantage to the database approach is that due to the persistent nature of the data, surviving failures and message rollbacks will work really well which might prove a problem with a Caching solution.

4. Caching based ordering:

The caching based solution works when one does not have access to a datastore and cannot introduce database versioning. I am not certain how this will perform when the messages are varied, i.e., many records and have not experimented with cache priming or recovery.

Both in the case of the Database and the Caching based solution, the expectancy is definitely that each message contains a identifier of a record, where it is a synthetic id or natural id or a complex unique key that can differentiate it from other messages as its the identifier that is primal for the locking strategies to work.

It is also possible that message ordering is not an issue for many cases as one can always build a data integrity validating process to ensure integrity after the fact or depend on the fact that a future update will fix the data integrity issue if present. Another case maybe for manual intervention to fix the one off issues. Do however note that it does become an issue if real time information is required.

If the message updates are for inserts or creations, then ordering is hardly an issue. If they are updates of information then ordering becomes more important. In cases where incremental updates and their order needs to be preserved is important, then the above mentioned locking strategies will not work.

The book I mentioned talks for re-sequencing of messages and restoring order, I am however not convinced that performance will not be impacted by the same.

Oracle WebLogichas a message ordering solution in the form of Unit Of Order. However, from experiments we have found that for a clustered highly available environment, the solution does not work. For any questions on the same, mail or post.

As always, for each use case there is a specific solution that will work...I would love to hear about people's experiences with message ordering or just any thoughts. If however you are trying to promote your jewelery site, please don't post here :-)
